3D AVM System For Audi , VW , Skoda Mib2 / Porsche Pcm4 Surround View Camera 3D 360° Panoramic System DVR SE-580

Description

Short review.Audi  VW  Skoda Mib2 /  Porsche Pcm4 system Surround View Camera 360° Panoramic System DVR Recording  Kit

Model : SE-580

Description

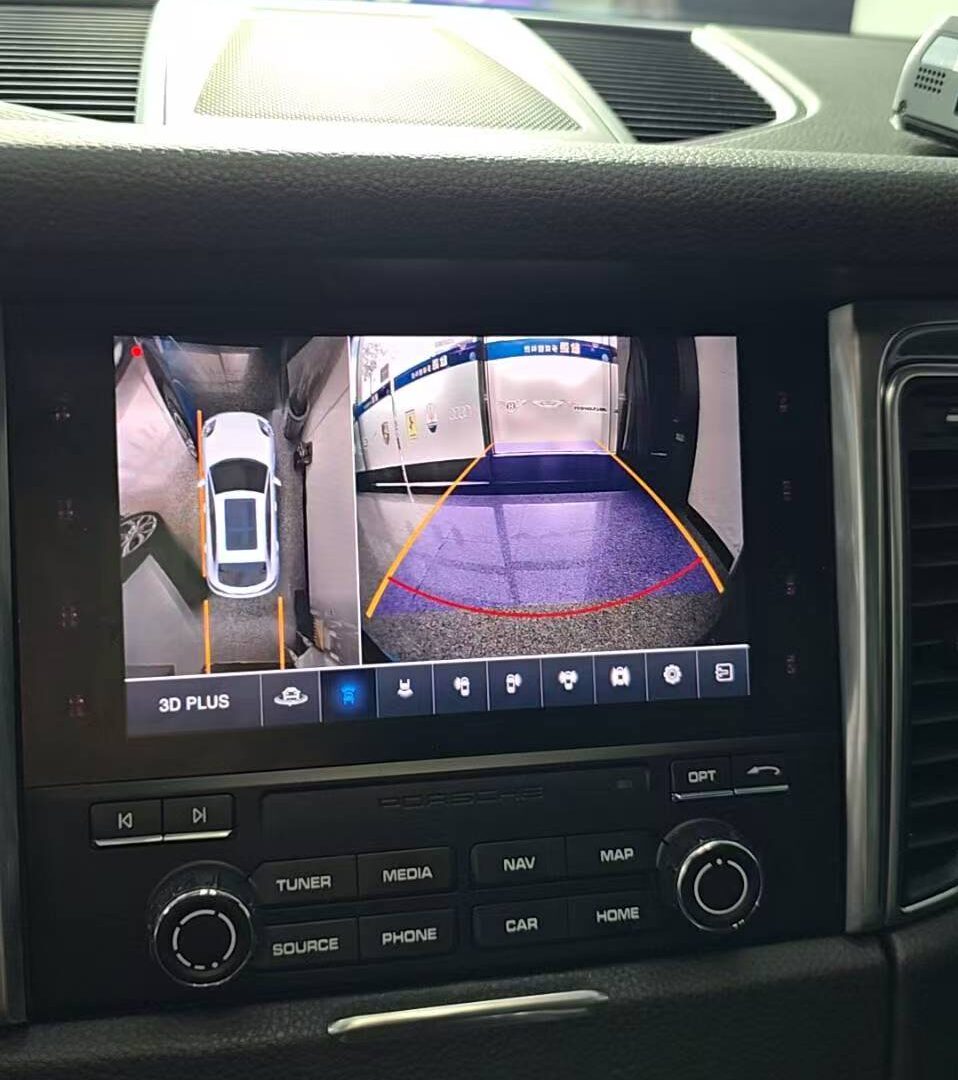

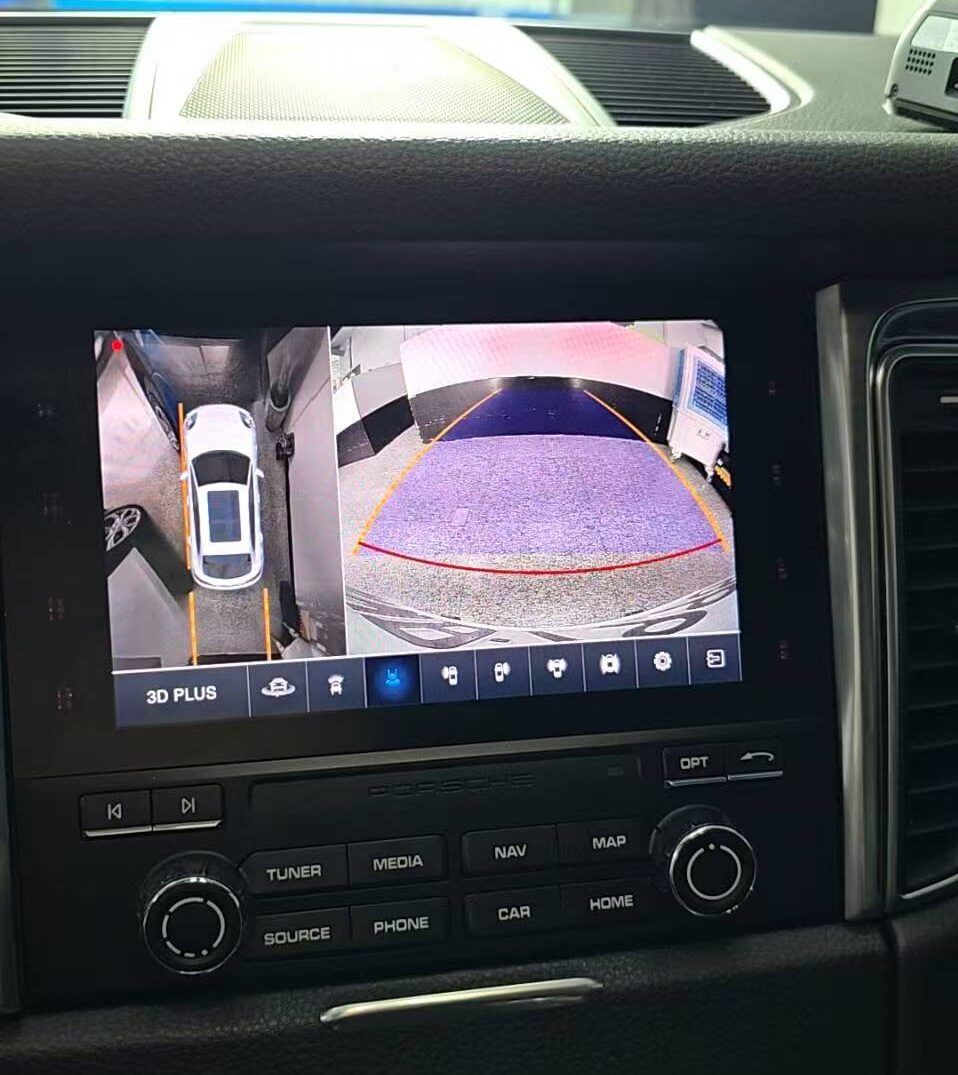

This is OEM style 360 system for Audi  VW  Skoda Mib2 / Porsche Pcm4 system,The system was goes to Original LVDS input port.Built-in DVR system.After installed , you need calibration cloth to carlibration.

Car Compatibility

• Audi / Vw / Skoda with MIB2 system
  5.8inch , 6.5inch , 8inch monitor
• Porsche with Pcm4 system
  6.5inch monitor

Audi VW Skoda Mib2 / Porsche Pcm4 AVM TECHNICAL SPECIFICATIONS

   Input:

• Genuine headunit Lexus LVDS input × 2

   Power:

• Input power: 8 V DC – 24 V DC
• Max. consumed power: 12 W

   Switch input mode:

• By P button
• By Gear R

   Board dimensions:

• 170mm*100mm*29mm

Audi VW Skoda Mib2 / Porsche Pcm4 AVM PACKAGE CONTENT

• 1 * 3D AVM main unit ( 12 Month Warranty )

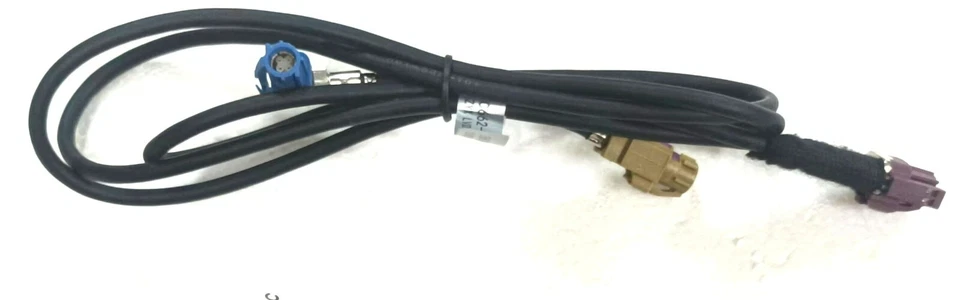

• 2 * LVDS cable

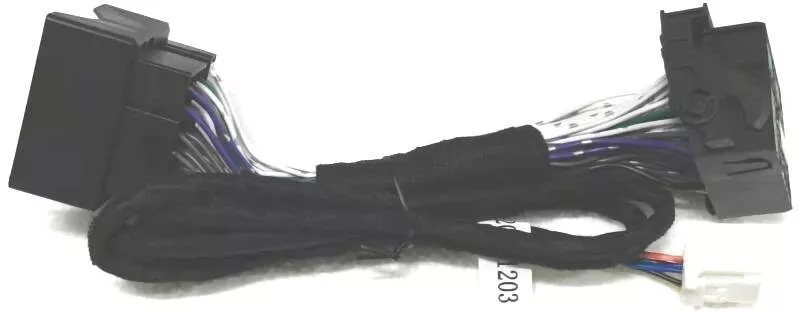

• 1 * CANBUS & Power cable
• 1 * Front camera
• 1 * rear camera
• 1 * Left camera
• 1 * Right camera
• 1 * USB harness
• 6 * Extension cable
• 1 * Calibration cloths(USD 30)
